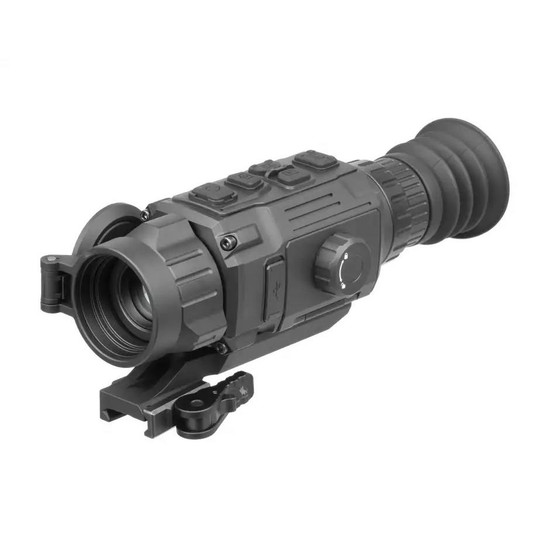

The RattlerV2 19-256, an improved version of the Rattler TS19-256, is an awesome option for close-range night hunts, beginners getting into thermal hunting, or to use as a buddy scope.
It features a 19mm Germanium lens, a 256x192 resolution thermal sensor, and a 2.5x base magnification with a detection range of up to 950 yards. Its wide Field of View (9.3° × 6.9° or 49 feet at 100 yards) allows for extensive area coverage during scanning. The upgrade from a 25 Hz to a 50 Hz refresh rate in the Rattler V2 19-256 ensures smoother scanning with minimal lag.
The RattlerV2 19-256 includes enhancements familiar to AGM Rattler users, with some additional game-changing improvements. An upgraded battery compartment accommodates a rechargeable battery, extending run time to 11.5 hours. Notable features include Shot Activated Recording, a simplified menu layout, and 10 reticle options with multiple zeroing profiles for various calibers and rifles. The scope also comes with a custom ADM QD Mount for easy removal and reattachment, Wi-Fi hotspot connectivity through the AGM app, a user-friendly, raised 5-button layout for easy navigation, even with gloves, and much more!
Warning: California's Proposition 65
Upgraded Scope Body Design
19mm Germanium lens
256x192 resolution thermal sensor
2.5x base magnification
2.5x-20x digital zoom
Detection range up to 950 yards
Wide Field of View: 9.3° × 6.9° (49 feet at 100 yards)
Improved refresh rate: 50 Hz (up from 25 Hz)
Enhanced focus ring with short throw
Upgraded Lens Cap
Rechargeable battery with up to 11.5 hours of run time
Shot Activated Recording
Video and Audio Recording
Simplified menu layout for ease of use
10 different reticle options
Multiple zeroing profiles for various calibers and rifles
Custom ADM QD Mount for easy scope removal and reattachment
Wi-Fi hotspot for connectivity with the AGM app
Raised 5-button layout for easy navigation, even with gloves
5 Years Warranty
Characteristics
Detector type: 12µm Uncooled
Refresh rate: 50 Hz
Resolution: 256 × 192
Base Magnification: 2.5x
FOV: 9.3° × 6.9° (49ft @ 100 yards)
Package Includes
ADM QD Mount
Two Rechargeable Batteries
Battery Charger
USB Cable
Lens Cloth
Owners Manual
Carrying Case
Downloads
Data Sheet
User Manual
Export Restrictions:
Product shown herein is subject to US export regulations and may require a license prior to export. Any diversion contrary to US Government regulations is prohibited.
Dimensions
219 × 68 × 67 mm (8.5 × 2.7 × 2.6 in) (w/o mount)
Battery life (operating at 20°?)
Up to 11.5 hours (25°C, with hotspot off)
Palettes
Black Hot, White Hot, Red Hot, Fusion
Scene Mode
Cold, Warm
Picture In Picture Mode (PIP)
Yes
Hotspot
Yes
Video Recording
Yes
Defective Pixels Correction (DPC)
Yes
Digital Magnification
2.5× - 20×
Magnification
2.5x
Detector type
12µm VOx Uncooled Focal Plane Array
Standby Mode
Yes
Resolution
256 × 192
Detection Range (6' object)
950 m/yd
Snapshot
Yes
Lens system
19 mm; F/1.0
Field of view (H × X)
9.3° × 6.9° (49 ft @ 100 yards)
Eye relief
45 mm
Display
0.39-inch, OLED, 1024×768
Storage
Built-in EMMC (16 GB)
Battery Type
Replaceable and Rechargeable Li-ion Battery
External power supply
5 VDC, 2 A, USB Type-C
Operating Temperature Range
-30°C to +55°C (-22°F to 131°F)
Weight
0.48 kg (1.06 lb)
Protection Level
IP67
Package Includes
Thermal Imaging Rifle Scope, Mount, Two Rechargeable Battery, Charger, USB Cable, Lens Cloth, Manual, Carrying Case
Reticle
10 types, 4 colors, on/off
