KNOW THE WATER BETTER THAN A LOCAL

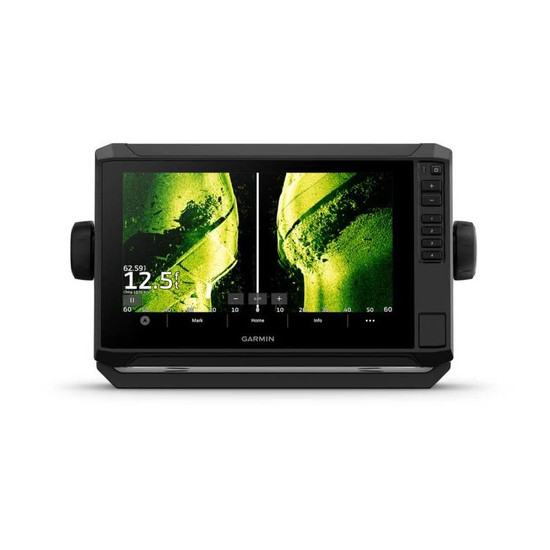

When it comes to catching more fish, they say, "Talk to a local." With the ECHOMAP UHD2 chartplotter, which offers our best-in-class sonar and mapping and premium touchscreen display with keyed-assist, you'll know the water even better than they do.
The bright 6", 7" or 9" touchscreen display with keyed-assist is user-friendly and easy to read.
Good things come in threes. Three sonar types, that is: Garmin traditional, ClearVü™ and SideVü™ sonars.
Improved detail? Check. Distinguished targets? Yep. That's the beauty of high-contrast vivid color palettes.
If you're running another ECHOMAP UHD2 chartplotter, you can wirelessly share sonar, waypoints and routes.
Want our best in mapping? Who doesn't? Select chartplotters come with Garmin Navionics+™ mapping.
With Transducer
ECHOMAP UHD2 (device varies depending on selection)
GT56-TM transducer
Power cable
Tilt mount with quick-release cradle
Protective cover
Hardware
Documentation
DIMENSION 10.4" x 6.5" x 3.2" (26.4 x 16.6 x 8.0 cm)
TOUCHSCREEN
INPUT Touchscreen with Keyed Assist
DISPLAY SIZE 7.8" x 4.5", 9.0" (19.8 x 11.5 cm, 22.9 cm)
DISPLAY RESOLUTION 1024 x 600 pixels
DISPLAY TYPE WSVGA, TN
WATERPROOF
IPX7
MOUNTING OPTIONS Bail or flush
Maps & Memory
ACCEPTS DATA CARDS
1 microSD™ card; 32 GB maximum size
WAYPOINTS
5,000
TRACK POINTS 50,000
TRACKS 50 saved tracks
NAVIGATION ROUTES 100
Sensors
HAS BUILT-IN RECEIVER
RECEIVER
10 Hz
NMEA 2000 COMPATIBLE
GPS
GLONASS
GALILEO
BEIDOU
SUPPORTS WAAS
SUPPORTS MULTI-BAND, MULTI-CONSTELLATION GPS
Built-in Maps
BUILT-IN AUTO GUIDANCE+ yes (downloadable via ActiveCaptain app)
GARMIN NAVIONICS+ INLAND & COASTAL yes (see Additional)
GARMIN NAVIONICS+ (COASTAL) yes (see Additional)
GARMIN NAVIONICS+ (INLAND) yes (see Additional)
TIDE TABLES yes (see Additional)
Optional Map Support
GARMIN NAVIONICS+™
GARMIN NAVIONICS VISION+™
TOPO
STANDARD MAPPING
GARMIN QUICKDRAW CONTOURS
Chartplotter Features
AIS
DSC
SUPPORTS FUSION-LINK™ COMPATIBLE RADIOS
ACTIVECAPTAIN® COMPATIBLE
SAILING FEATURES
Sonar Features & Specifications
DISPLAYS SONAR
POWER OUTPUT 500 W
TRADITIONAL SONAR (DUAL FREQUENCY/BEAM) built-in (single channel CHIRP, 50/77/83/200 kHz, L, M, H CHIRP)
CLEARVÜ built-in 260/455/800/1000/1200 kHz
SIDEVÜ built-in 260/455/800/1000/1200 kHz
PANOPTIX™ SONAR
LIVESCOPE
Connections
NMEA 2000 PORTS
GARMIN MARINE NETWORK PORTS
1
12-PIN TRANSDUCER PORTS 1
BLUETOOTH® PAIRING
ANT+ (CONNECTIVITY)
GARMIN WI-FI NETWORK (LOCAL CONNECTION)
Electrical Features
POWER INPUT 9 to 18 Vdc
TYPICAL CURRENT DRAW AT 12 VDC 1.72 A
MAXIMUM CURRENT DRAW AT 12 VDC 3.5 A
MAXIMUM POWER USAGE AT 10 VDC 20.7W
Additional
ADDITIONAL
Garmin Navionics+ (inland and coastal): 95sv Canada, Australia and New Zealand
Garmin Navionics+ (coastal): 94sv U.S. coastal, 95sv UK/Ireland
Garmin Navionics+ (inland): 93sv U.S. lakes
Tide tables: 93sv, 94sv, 95sv
