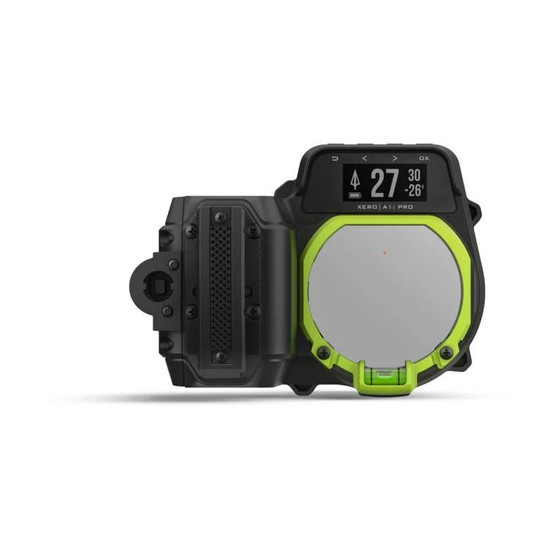

Auto-ranging Digital Sight with Dual-color LED Pins and Micro-adjustable Rails (Left-handed)
READY FOR ANYTHING
Be ready at a moment's notice by using our most advanced auto-ranging digital bow sight yet. With a fast and easy to set up, giving you line of sight feedback to take your best shot every time.
No need to guess the distance to your target. This sight calculates it automatically.
Set dual pin colors, so you can find the right distance fast.
Quickly fine-tune your sight for the easiest setup yet.
Automatically creates pin stack to the estimated maximum distance for your bow based on arrow speed, draw length, and arrow diameter.
Easy on, easy off. If you travel with your bow, you're going to love the quick-detach feature.
One-year battery life means more time hunting and more confidence in your shot.
MICROADJUSTMENTS
Microadjustable rails let you make quick, precise changes for elevation, windage and laser reticle alignment.
AUTOMATIC PIN STACK
Calibrate your 20-yard pin, enter your bow speed, draw length and arrow diameter and Xero A1i PRO will automatically create a pin stack to your bow's estimated maximum distance.
QUICK-DETACH FEATURE
Easily remove the bow sight for travel, then reattach it to its original position in seconds when you're ready to use it.
DIMENSION 9.2" x 5.0" x 3.7" (233.8 x 127.2 x 94.7 mm) (includes device and mount)
DISPLAY SIZE 1.00"W x 0.42"H (2.5 x 1.1 cm); 2.0" diag (5.0 cm)
DISPLAY RESOLUTION 160 x 68 pixels
DISPLAY TYPE sunlight-visible, transflective memory-in-pixel (MIP)
WEIGHT
18.0 oz (510.3 g) (includes device and mount)
WATERPROOF IPX7
BATTERY TYPE 2 lithium AAA (included)
BATTERY LIFE Up to 1 year
Additional
ADDITIONAL
LED pins: 2 colors (red and green)
Pin diameters = .007" and larger for red, .009" and larger for green
Range: 100 yards to game; 300 yards to reflective targets
Operating range: -20C (-4F) to 60C (140F)
Glass lens coating: target side is anti-reflective, water repellant and easy clean; archer side is 20% reflective, water repellant and easy clean
Light projection: no visible light is ever projected toward the target
Magnification: none
Pin brightness: ambient light sensor controlled or manual
Silent button trigger
Microadjustable rails
Quick-detach feature
Auto-calibration
Dynamic level
Flight apex
Xtra Distance (XD) mode
Customizable fixed pins
Laser Locate™ feature
Multiple arrow profiles
Shot dynamics
Shot counter
Compatible with Garmin GPS devices: see Compatible Devices tab
