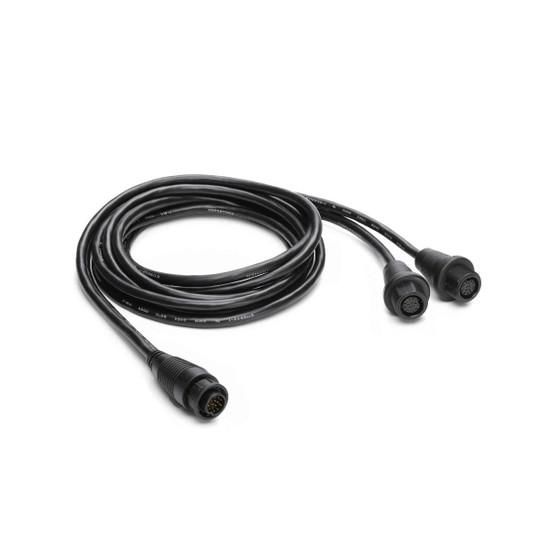

This Y cable allows for the connection of a MEGA 360 Imaging transducer and a 2D / MDI transducer (including Built-in MEGA Imaging) to the same compatible Humminbird fish finder.
Compatible with: MEGA 360, All XPLORE models, All APEX models, All SOLIX G2 and G3 models
Compatible with the following HELIX models when used with #720109-1 AD HELIX M360: HELIX 15 MSI+ GPS G4N, HELIX 15 MDI+ GPS G4N, HELIX 12 MSI+ GPS G4N, HELIX 12 MSI+ GPS G3N, HELIX 12 MDI+ GPS G4N, HELIX 12 MDI+ GPS G3N, HELIX 10 MSI+ GPS G4N, HELIX 10 MSI+ GPS G3N, HELIX 10 MDI+ GPS G4N, HELIX 10 MDI+ GPS G3N, HELIX 9 MSI+ GPS G4N, HELIX 9 MSI+ GPS G3N, HELIX 9 MDI+ GPS G4N, HELIX 9 MDI+ GPS G3N, HELIX 8 CHIRP MSI+ GPS G4N, HELIX 8 MSI+ GPS G3N
Cable Length: 10 ft (3m) cable MEGA 360 side, 30 in (76 cm) cable on 2D / MDI side
For use when connecting a MEGA 360 Imaging transducer to a compatible XPLORE, APEX, SOLIX, or HELIX fish finder, in conjunction with a Built-in MEGA Imaging transducer or external 14-pin 2D /MDI transducer
If this cable is being used with a HELIX fish finder, then the #720109-1 AD HELIX M360 must be attached between the single plug end of the Y cable and the HELIX unit
Compatible with Built-in MEGA Imaging transducers on select Minn Kota trolling motors
Waterproof, screw-on, 14-pin connectors
1-Year Limited Warranty
Model 14 M360 2DDI Y - MEGA 360 & 2D/MDI Y cable
Product Code 720108-1
UPC 0082324054860
Current Models HELIX 10, SOLIX 10 G3, SOLIX 12 G3, HELIX 9, APEX 16, HELIX 8, HELIX 15, APEX 13, HELIX 12, SOLIX 15 G3, APEX 19, XPLORE 12, XPLORE 9, XPLORE 10
Length Less than 20 ft
Type Transducer Adapter Cables
Warranty One-Year Warranty
