Pro-Guide Lithium/AGM/Lead Acid On-Board Battery Charger 3-bank (1-36v 10a, 1-12/16v 10a & 1-12v 10a)

SKU
81014591126
$549.99
Only 1 left in stock
Free Shipping
FREE Local Pickup in Store
Product Description

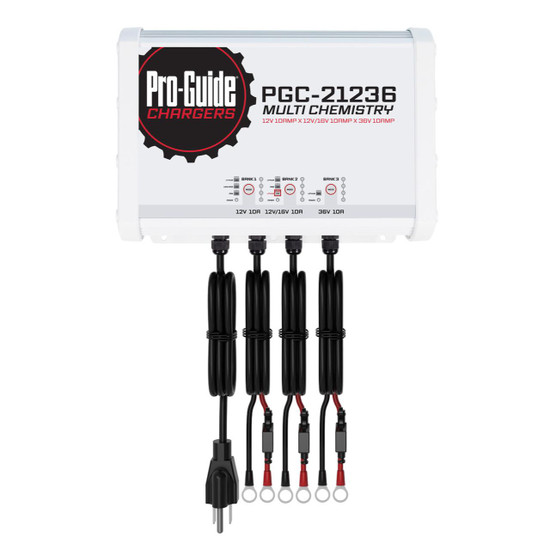

The Pro-Guide PGC-21236 is a 12V Lead Acid / AGM / Lithium, 16V Lithium & 36V Lithium on-board battery charger.

12V LEAD ACID // 12V AGM // 12V LITHIUM // ACTIVATE MODE // 16V LITHIUM // 36V LITHIUM

Each 12V Bank can select one of three charge profiles and allows the consumer to mix and match for their optimum setup.

Allowing the charger to supply a single 12V charging bank for Lead Acid, AGM, or Lithium Chemistries, a second bank to charge a 12V AGM, Lithium, or 16V Lithium, and then a third bank to charge a 36V Lithium Battery(s).

Activation Mode supplies a short supply of voltage to wake any asleep Lithium Battery, or Simply Hold the button for (3-5) seconds to enter a manual Activation Mode.

The PGC Line is designed to stay plugged in year-round. With the Intelligent PGC Algorithm, each PGC Charger checks each battery's state of charge on a specific timeline ensuring that you'll be fully charged for your next adventure.

With over 40 years of experience, Pro-Guide is proud to stand behind this This charger is covered by a 2 Year Free, and 4 Year Total Warranty.

Battery Type 12V Lead Acid / AGM / Lithium, 16V Lithium, & 36V Lithium
Output Voltage DC 12V x 1, DC 12V/16V x1, & DC 36V x 1
Max Output Voltage 14.1-14.3 for 12V Lead Acid Battery, 14.3-14.7 for 12V AGM Battery, 14.4-14.7 for 12V Lithium Battery, 18-18.3 for 16V Lithium Battery, & 43-44 for 36V Lithium Battery
Output Current 10A for 12V Bank, 10A for 12/16V Bank & 10A for 36V Bank
Length (in / mm) 14.7in / 373mm
Width (in / mm) 9.96in / 253mm
Height (in / mm) 3.86in / 98mm
Weight (lbs / kg) 24.7lbs / 11.2kg
IP Rating 68
