Sensor 384x288 pix. @ 17 µm (NETD <25 mK)
Objective lens F30/1.2
Magnification, x 2 - 8 (x4 zoom)
Field of view (HxV), degrees 13.3x10 / 23.3?17.5
High-quality reinforced magnesium alloy housing
Axion is designed for constant, often hard use. A magnesium alloy housing is light and strong at the same time. The housing reliably protects the internal components of a thermal imaging device from shocks, drops, moisture, heat or cold. At the same time, a metal housing effectively removes the heat from electronics, minimizes image noise and increases consistency of the device operation during long-term observation.
Dual Wi-Fi waveband support 2.4 / 5 GHz
In Axion thermal imagers, the standard smartphone connection frequency range via a 2.4 GHz WiFi channel is complemented with an effective 5 GHz range. The 5 GHz connection offers better bandwidth, a faster data transfer rate, noise immunity and improved connection stability, resulting in more productive and easier operation of the thermal imager with a smartphone.
User mode
Use the brightness and contrast adjustments to maximise the detail and informative value of the image in specific observation conditions. The User Mode function saves selected brightness and contrast settings in the device's memory providing optimal image quality for the next use of the thermal imager immediately, with no additional adjustments needed.
Fast aperture F35/1.0 lens
Germanium F35/1.0 lens features high infrared transmission in the LWIR range. Due to the high precision manufacturing of the optical elements of the lens, the image generated by the Axion 2 thermal imaging device sensor is distinguished for its clarity and detailing.
Extended battery life. Up to 7 hours on a single charge
A quick-change APS3 rechargeable battery provides 7 hours of continuous operation of the thermal imaging device on a single charge. The battery is removed from a battery housing and replaced with a new one in seconds. The battery is charged in a special device or inside the device from a PC, household power system or power bank via USB. The same sources are used for external power supply of a thermal imaging device.
3 levels of sensitivity amplification
The Axion thermal imaging devices use a new approach to image optimization depending on the purposes and conditions of observation and provide high-quality rendering of both target objects and background. Three levels of signal amplification in combination with a connected smoothing filter and fine brightness and contrast adjustments give the hunter great opportunities for long-range detection of the animal under different weather and temperature conditions and determining its trophy qualities.
Pocket-sized dimensions and light weight
Axion has a space-saving and pocket-sized design and weighing 300 grams. The device is easy to grip and operate by right-handed and left-handed people due to the symmetrical design and in-line buttons arrangement on the upper panel.
Specs
Open media featured in modal

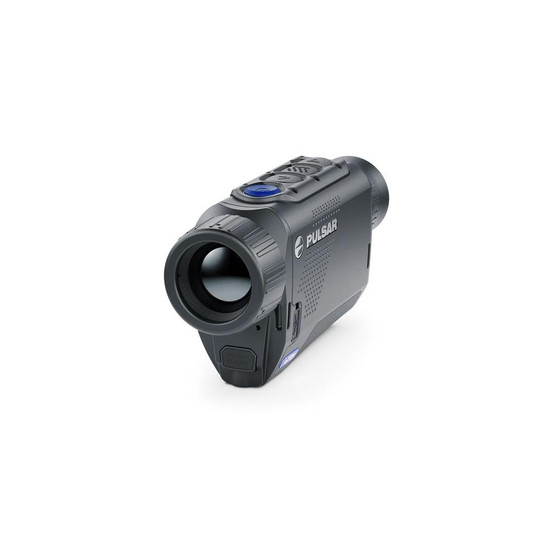

Axion XQ30 Pro Thermal Monocular
Main
Sensor
384x288 pix. @ 17 µm (NETD <25 mK)
Objective lens
F30/1.2
Magnification, x
2 - 8 (x4 zoom)
Field of view (HxV), degrees
13.3x10 / 23.3?17.5
Detection range, m
850
