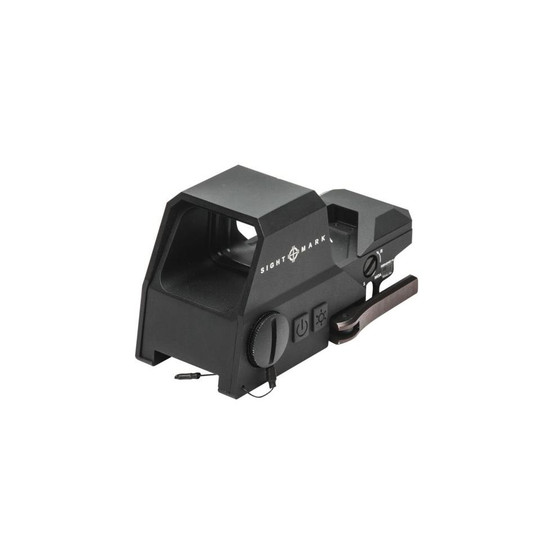

The Sightmark Ultra Shot R-Spec Reflex Sight / Dark Earth turns up the heat on your range time with ultra-fast target acquisition and seriously long battery life, from 200 to 2,000 hours on a single CR123A battery. The Ultra Shot R-Spec's premium wide-angle lens system with scratch resistant and anti-reflective silver coating, 4 illuminated red/green reticle options with 10 brightness settings, parallax correction (beyond 25 yards) and unlimited eye relief deliver a crisp, robust field of view and uncompromising reliability. Built tough, the Ultra Shot R-Spec Reflex Sight / Dark Earth is shock proof, IP55 weather-resistant, recoil rated up to .50 BMG and constructed of a rugged, lightweight 6061-T6 aluminum body and protective shield. 1 MOA windage and elevation adjustments, up to 120 MOA of travel, get you on target quickly and keep you there with an Interlock internal locking adjustment system, for precise, repeatable shooting from any range your comfortable shooting at 1x magnification. The Ultra Shot R-Spec Reflex Sight / Dark Earth also features a low battery indicator, digital switch controls, 1-hour auto shut-off, quick-detach picatinny mount and Sightmark's lifetime warranty. Includes adjustment tools, CR123A battery, operation manual and neoprene cover.
US Pat. D872219 US Pat. D872219S1
Included in Package
Neoprene cover
Adjustment tools
Battery
Manual
Batteries Used
Type: CR123A
Quantity: 1
Features
Rugged lightweight aluminum alloy housing
Protective aluminum shield
Quick detach picatinny mount
Wide lens provides quick target acquisition
Slotted windage and elevation adjustments
Red and green reticle illumination
Low battery indication
Digital switch controls
10 reticle brightness levels
1 hour auto shutoff
Multiple reticle options
Scratch resistant lens coating
Interlock internal locking adjustment system
Reticle, Type 4 Pattern - 5 MOA dot, 3 MOA dot with 50 MOA circle, 3 MOA dot with 50 MOA crossshair, 3 MOA dot with 30 MOA circle/crosshair (subtensions total 50 MOA)
Reticle, Color Red and Green
Magnification 1
Reticle Brightness Setting Off, 1-10
Eye relief (in/mm) Unlimited in/mm
Objective overall dimension (mm) 33x24 mm
Elevation Adjustment 120 MOA
Windage Adjustment 120 MOA
Adjustment Value 1 MOA
Parallax Setting 25 / 23 yd/m
Finish/Color Matte Black
Body Material Aluminum 6061-T6
Maximum Recoil .50 BMG Max caliber
Waterproof IP Standard IP55 - water resistant
Shockproof Yes, 8ft / 2.4m
Fog Proof No
Lens Coating AR Silver
Nitrogen Filled No
Battery Life 200 - 2,000 Hours
Mount Type Picatinny
Battery Type CR123A
Battery Voltage, V 3V
Width 1.96 / 50 in / mm
Length 4.33 / 110 in / mm
Height 2.28 / 58 in / mm
Weight, oz 10.7 oz
Operating temperature, F/C -22 to 160 / -30 to 71 F/C
